Astra 19.2 vs 28.2 LNB Position Explained

Estimated reading time: 16 minutes.

When receiving both Astra 19.2E and Astra 28.2E on the same dish, the most critical element is not the dish itself. It is the position of the LNB. Many users align the dish correctly but still face weak signal or missing channels because the LNB is not positioned properly.

LNB positioning determines how the reflected signal from the dish is captured and converted. Even small shifts in position or angle can affect signal quality significantly. When working with two satellites, the challenge becomes finding the correct balance between both positions.

Understanding LNB positioning basics

The LNB is placed at the focal point of the dish. This is where the reflected signal from the dish surface is concentrated.

If the LNB is not at the correct position, the signal will not be captured efficiently. This reduces signal quality.

In multi satellite setups, one LNB is placed at the focal point while others are positioned off center.

Dish focal point and main LNB

The main LNB is placed at the focal point of the dish. This LNB receives the strongest signal.

In most setups, Astra 19.2E is used as the main satellite because it has a wider beam and is easier to receive.

This ensures a stable base signal before adding additional satellites.

Offset LNB for second satellite

The second LNB is positioned slightly to the side of the focal point. This allows it to receive signals from another satellite position.

For Astra 28.2E, the LNB is placed to the side depending on the direction of the dish and your location.

This offset reduces signal strength compared to the main LNB, which is why precise positioning is important.

LNB spacing between 19.2E and 28.2E

The physical distance between LNBs corresponds to the orbital separation between satellites.

Astra 19.2E and Astra 28.2E are about 9 degrees apart, so the LNB spacing must reflect this difference.

Incorrect spacing leads to weak signal or inability to lock onto the second satellite.

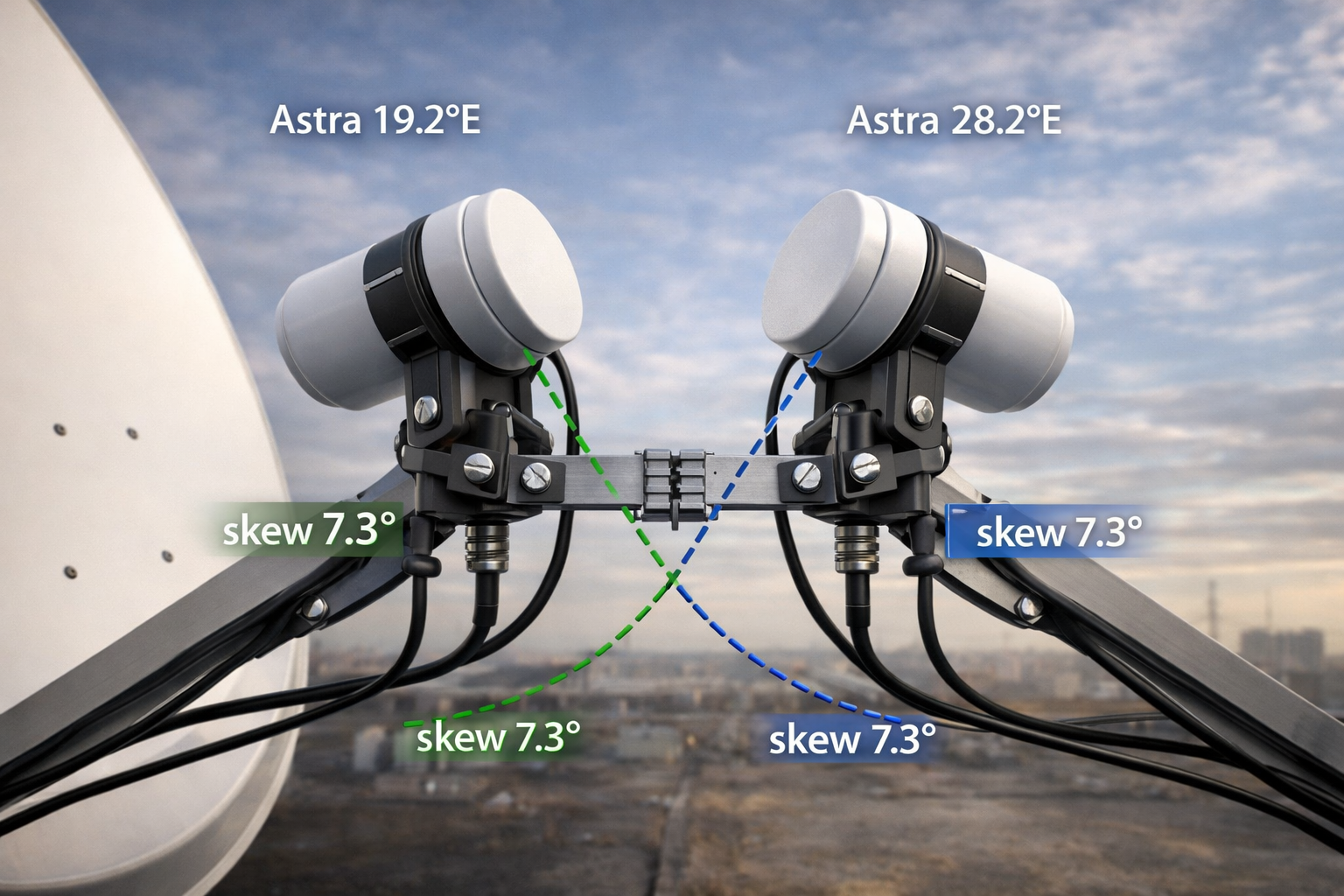

LNB skew and polarization alignment

LNB skew controls the angle of polarization. This is essential for separating horizontal and vertical signals.

Each satellite requires a slightly different skew angle. Incorrect skew reduces signal quality and affects certain transponders.

Fine tuning skew improves signal clarity and stability.

Impact on signal strength and quality

The main LNB usually provides strong signal because it is at the focal point.

The offset LNB receives weaker signal due to its position. This makes Astra 28.2E more sensitive in dual setups.

Signal quality depends more on correct positioning than raw strength.

Real world LNB behavior

In real setups, users often experience stable reception on Astra 19.2E but weaker performance on Astra 28.2E.

This is because the second LNB is not at the focal point and the satellite uses a focused beam.

Small adjustments in LNB position can significantly improve reception.

Analytical LNB positioning table

Factor	Main LNB 19.2E	Second LNB 28.2E
Position	Focal point	Offset position
Signal strength	High	Lower
Alignment sensitivity	Moderate	High
Beam type	Wide beam	Focused beam
Adjustment difficulty	Easy	Requires precision

How to optimize LNB position

Start by aligning the main LNB for Astra 19.2E at the focal point.

Add the second LNB and adjust its position slowly while monitoring signal quality.

Adjust horizontal spacing and vertical position carefully.

Fine tune LNB skew for both satellites.

Use signal quality readings to find the best position.

FAQ

Question	Answer
Which LNB should be at the center	Astra 19.2E is usually placed at the focal point.
Why is the second LNB weaker	Because it is offset from the focal point.
How do I adjust LNB spacing	Move it gradually while checking signal quality.
Does skew matter	Yes it affects polarization and signal quality.
Can wrong LNB position cause no signal	Yes incorrect positioning can prevent signal lock.
